2 BEAMS IR BEAM MOTION DETECTOR for gate, door, windows, alarm

FOB Reference Price:Get Latest Price
US $8-15 / Sets | 20 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Fujian, China (Mainland)
Brand Name:
RUNKING
Model Number:
RK-HW02
Usage:
Speed Sensor
Theory:
Ultrasonic Sensor
Output:
Digital Sensor
Function:
gate, door, windows, alarm
Sensor Speed:
50 - 700 msec
Power Supply Voltage:
DC/AC13.8 - 24 V
Using Temperature:
- 25 ° C-55 ° C
Dismantle Prevention Output:
Contact Output DC30V0. 5 Amax.
Dedew and Defrost Method:
Ultrasonic Structure
Supply Ability
Supply Ability:
100000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1set/box
Port
HK
Lead Time :
10-20days

2 BEAMS IR BEAM MOTION DETECTOR for gate, door, windows, alarm



Dual Infrared Beam Introduction:

Dual Photoelectric Beam Detectors adopts advanced active infrared beam technology for the movement detection. The detector with dual beams with features of interruption time adjustable features to minimize the false alarm. Only dual beams interrupted simultaneously, the alarm will be triggered. This beam sensor comes with laser beam alignment function which reduces the installation time and along with that increases the work-ability of the device. The Beam sensor comes with built-in Optical Viewfinder for easy and quick alignment. One more notable feature of this beam is Automatic Gain Control (AGC) Circuit for precision. Other features include Weather proof Anti-rain, snow, dew, mist, frost design mounting brackets, Pole Clips etc. The protection distance (between Transmitter / Receiver) should be placed in the rated range. The detector with relay outputs (NC/NO) for working with any kinds of hardwired security system, can be built-in wireless RF transmitter for working with wireless alarm system.



Note: The protection distance (between Transmitter / Receiver) should be placed in the rated range.



Dual infrared Beam Key Features:

Dual beams provide reliable security and minimizing false alarm
Automatic input power filtering with special noise circuitry
Built-in optical viewfinder for easy installation
Adjustable response time for various application
Thunder lightning arrester (Anti-surge) circuit design
LED indication Anti-fog and anti-dew design
Tamper circuit included
Other additional functions: photic instruction, OK instruction, test terminal,multilevel LED indicator
Including Main unit mounting bracket set



Technical Parameter

ModelRK-HW02
Rated Range(Outdoor)20m30m40m60m80m100m
(Indoor)60m90m120m180m240m300m
Maximum Distance230m350m460m650m900m1100m
Beam2beams
Detection Method2beams interrupted at the same time
Light SourceInfrared LED
Sensor Speed50 - 700 msec
Alarming OutputRelay Contact Output Contact Rating: ACDC30V0.5Amax
Power Supply VoltageDC/AC13.8 - 24 V
Current Sinking40mAmax40mAmax40mAmax55mAmax65mAmax65mAmax
Using Temperature- 25 ° C?55 ° C
DimensionRefer to exterior diagram
Dismantle Prevention OutputContact Output DC30V0. 5 Amax.
Adjusting Angle of Optical Axis (Horizontal)180 ° ±90 °
Adjusting Angle of Optical Axis (Vertical)20 ° ±10 °
Hairline PointerDis-mountable
Dedew and Defrost MethodUltrasonic Structure
Other FunctionLight Accept Indication Ok Indication Testing Terminal
MaterialPC
Weight1000g Light Receptor +Light Projector

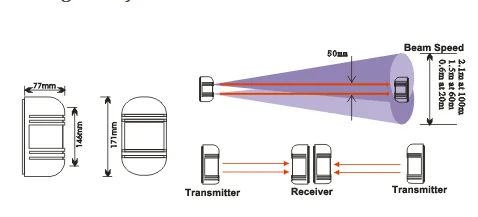

Working Theory & Dimension:




Specification of Wireless Transmitter Module:
Operating frequency: 433MHz (315MHz optional)
Operating Voltage: 9V-12V
Modulation mode: ASK
Quiescent current: 0uA
Operating current: 8 - 15mA
Transmitting power: 10 - 15mW
Encoding type: Learning code (eV1527)   [can be fixed code, PT2262]
Transmitting Distance: 100-200 M (open space, receiver sensitivity: -108dBm)
